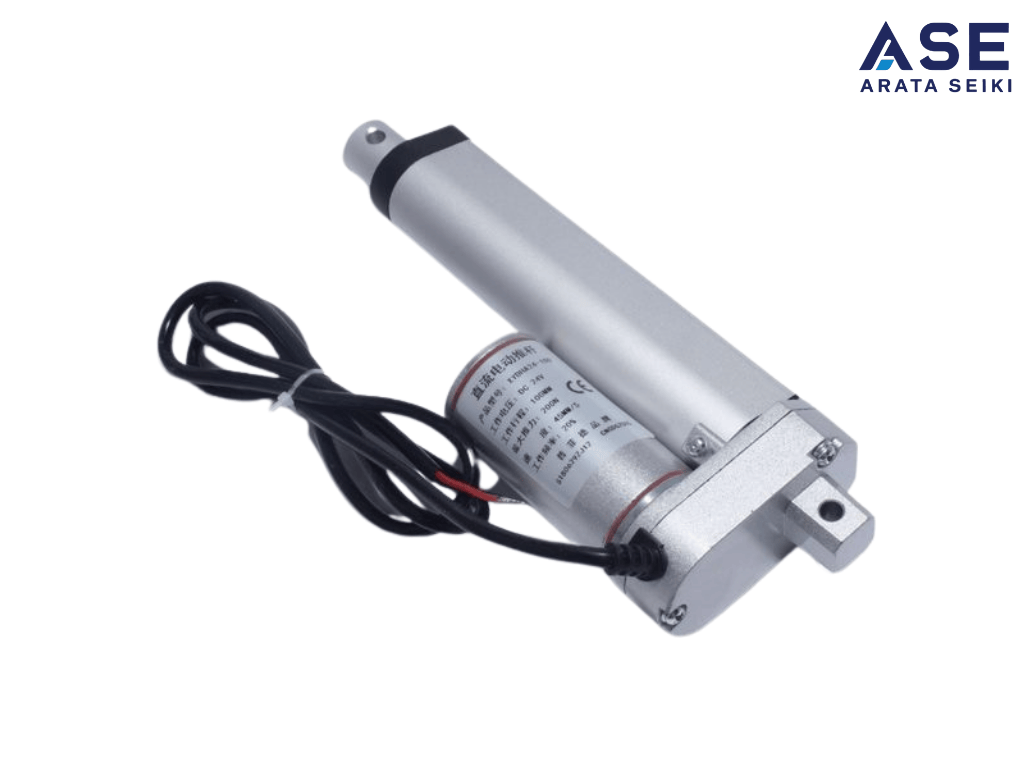

Common Errors of Electric Actuators and How to Fix Them: A Comprehensive Technical Guide
- Writer: Le Ngoc Manh at the time
- Blog EN
In the operational blueprint of a smart factory, if CNC press brakes or Laser cutting machines are the "industrial giants," then electric actuators are the sophisticated "muscles" performing precise linear movements. However, because they function at the intersection of electrical and mechanical energy, electric cylinders frequently face potential failures. Mastering diagnostics and repair not only saves production schedules but also protects the entire control system above.
1. Understanding Electric Actuators in the 5-Level System
To fix them effectively, first identify the position of the electric actuator in the ISA-95 model:
Level 1 (Field Level): The electric actuator is an Actuator. It converts electrical energy into mechanical motion along a straight axis.
Level 2 (Control Level): The actuator receives commands from a PLC or Driver. Most "no-run" errors stem from a loss of communication between these two levels.
2. Common Errors and Definitive Solutions
I will categorize these errors into 3 main groups for easy tracking and diagnosis:
Group 1: Mechanical Errors (Noise, Heat, and Vibration)
Error 1: Unusual noise or strong vibration during operation
Causes: * Lack of lubrication on the lead screw or ball screw.
Worn or broken internal bearings.
Misalignment during installation, causing stress on the guide rails.
Fixes: 1. Check and add specialized lubricant.
2. Re-align the actuator's concentricity with the load.
3. If the noise comes from inside the housing, disassemble to inspect the bearings.
Error 2: Abnormal overheating
Causes: * Overloading beyond the design capacity.
Excessive internal friction due to dryness or mechanical jamming.
Fixes: 1. Re-verify the actual Payload.
2. Ensure the Duty Cycle does not exceed the manufacturer's limits (e.g., 25% or 50%).
Group 2: Electrical and Control System Errors
Error 3: Actuator does not operate despite being powered
Causes: * Broken power or signal cables from the Driver/PLC.
Blown fuse or faulty DC Power Supply.
Logic error at Level 2: The Trigger signal has not been sent from the PLC.
Fixes: 1. Use a multimeter to check the input voltage.
2. Check the status LEDs on the Driver.
3. Access the control software to verify if the "Enable" command is active.
Error 4: Over-travel or failure to stop at the correct position
Causes: * Faulty Limit Switches.
Faulty Encoder causing the system to lose track of the current position.
Fixes: 1. Check the sensitivity and installation position of the limit sensors.
2. Clean the Encoder or replace it if the feedback signal is intermittent.
Group 3: Precision Errors (CNC/Laser Applications)
Error 5: Accumulated position error (Backlash)
Causes: Looseness in couplings or wear of the lead screw nut after long-term use.
Fixes: 1. Configure Backlash Compensation in the control software.
2. If the play exceeds allowable limits, replace the screw assembly.
3. Professional 5-Step Troubleshooting Process
When faced with a faulty electric actuator, do not rush to disassemble the machine. Follow this process:
Visual Inspection: Look for mechanical obstructions, burn marks, or frayed wires.
Isolate the Load: Detach the actuator from the machine mechanism to run it under no-load conditions. If it runs normally, the fault lies in the machine's mechanical structure.
Check Power and Signal: Ensure clean voltage and stable PLC signals.
Software Check (Level 3 - SCADA): Review error logs on the monitoring system to see when the error occurred and if it repeats.
Maintain/Replace: Replace components according to the manufacturer's Part Number.
4. Tips for Extending the Lifespan of Electric Actuators
As an expert, I always advise focusing on "prevention over cure":
Regular Cleaning: Metal dust in Laser cutting shops is extremely dangerous if it enters the lead screw. Ensure the protective bellows/casing are sealed.
EMI Shielding: Ensure actuator signal cables are shielded, especially when installed near large noise sources like press brake transformers.
Right Specification: Always choose an actuator with a Thrust rating $20-30\%$ higher than the actual requirement to avoid running at the limit.
Conclusion
Electric actuator errors are not daunting if you have a systemic perspective. From mechanical vibrations at Level 1 to signal conflicts at Level 2, every failure is an opportunity to better understand your production tools. A structured maintenance process and technical expertise will be a solid shield protecting your business's productivity.
