What is an Industrial Robot Arm? Classification and Practical Applications in Smart Factories

In the landscape of modern manufacturing, industrial robot arms are no longer futuristic concepts; they have become the "powerhouse" assistants that liberate humans from heavy, hazardous, and high-precision tasks. To truly master this technology, we must view the robot not as a standalone machine, but as a vital link in the automation ecosystem.

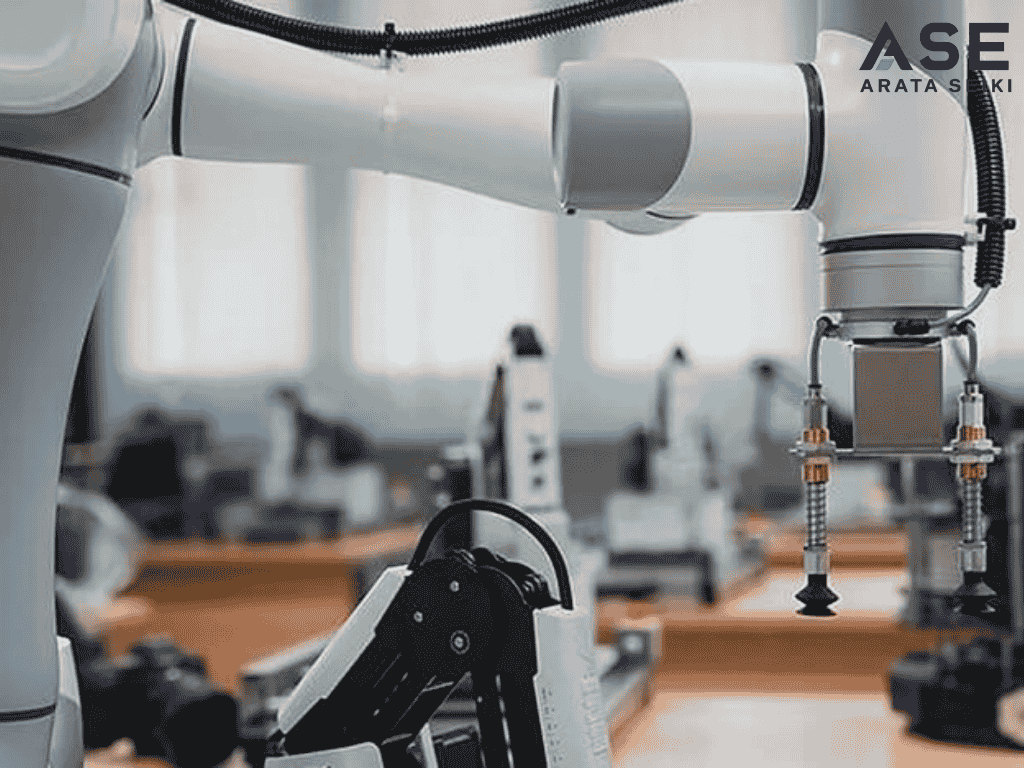

1. Defining Industrial Robot Arms within the ISA-95 Ecosystem

An industrial robot arm is an electromechanical device programmed to perform material handling, assembly, or tool manipulation tasks. To understand its role, consider the 5-level automation model:

• Level 1 (Field Level): This is where the robot resides, acting as the Actuator. It executes physical movements based on operational commands.

• Level 2 (Control Level): A robot does not operate on its own. It requires a "brain" – a Controller integrated with PLCs or high-speed microprocessors to coordinate the rhythmic movements of its joints.

The synergy between Level 1 and Level 2 allows the robot to perform intricate laser cuts or bend metal parts with precision down to $0.02\text{ mm}$.

2. Classification of Industrial Robots: Choosing the Right Tool for the Job

Understanding different robot types prevents wasted investment. Each structure is suited for specific spaces and purposes:

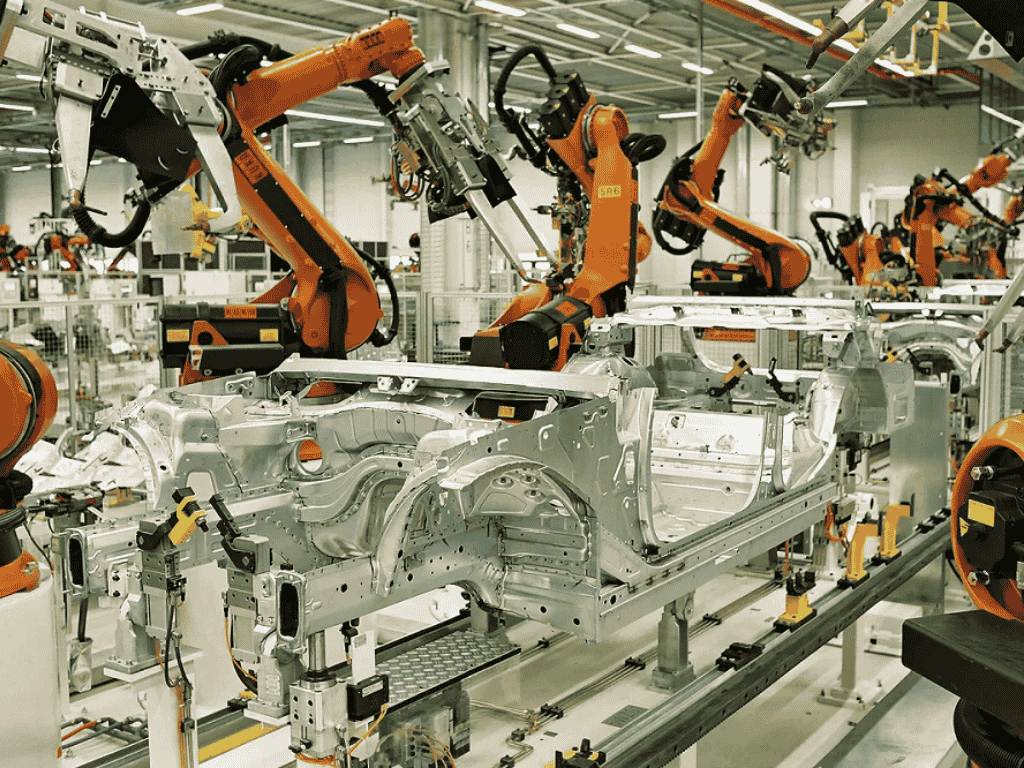

A. Articulated Robot - The "Swiss Army Knife" of the Factory

This type most closely mimics the human arm, typically featuring 4 to 6 rotational axes.

• Pros: Highly flexible reach within complex 3D spaces.

• Application: Widely used for welding, painting, tending CNC press brakes, or handling metal sheets for laser cutters.

B. SCARA Robot - The Speed Specialist on Flat Surfaces

SCARA features a horizontal joint structure, keeping the Z-axis (up/down) rigid.

• Pros: Extremely high speed and perfect repeatability on a single plane.

• Application: Dominant in electronics assembly or small product packaging.

C. Delta Robot (Spider Robot) - The High-Speed Athlete

Designed with three slender arms connected to a common point below.

• Pros: Massive acceleration, specializing in lightning-fast "Pick and Place" tasks.

• Application: Food, pharmaceuticals, and microchip assembly.

D. Collaborative Robot (Cobot) - The Safe Colleague

Unlike traditional robots that require safety cages, Cobots are designed to work alongside humans.

• Features: Integrated with highly sensitive force sensors. Even a slight collision causes the robot to stop immediately to protect personnel.

• Application: Assisting in Quality Control (QC) or co-assembling machine parts with workers.

[Image comparing Articulated, SCARA, Delta, and Cobot robot types]

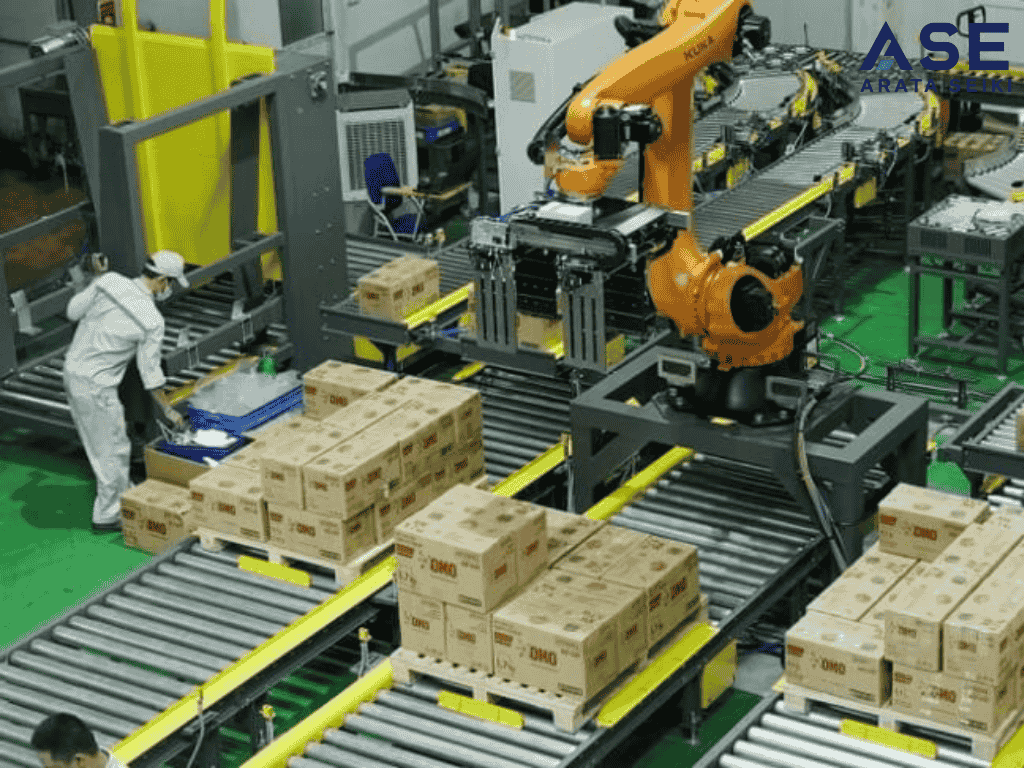

3. The "Golden" Specifications to Know

When reviewing robot technical data, focus on these three key metrics:

1. Payload: The maximum weight the robot can lift (including the weight of the end-effector/tooling).

2. Reach: The maximum distance the arm can extend. This determines the workspace footprint in your factory.

3. Repeatability: The ability to return to the exact same position after millions of cycles. For the CNC industry, this usually requires less than $0.05\text{ mm}$.

4. Vision: Robot and Production Integration

The true power of a robot is realized when it connects to the higher levels of a smart factory:

• Connecting to SCADA (Level 3) for remote productivity monitoring.

• Connecting to MES (Level 4) to receive automated production orders for specific batches.

Investing in robots is not just about buying a machine; it is an investment in limitless manufacturing capability.
