In the world of automation, the robotic arm is considered one of the greatest achievements of mechanical engineering and control technology. From automotive assembly lines to complex medical laboratories, the presence of robotic arms has liberated humans from heavy, dangerous tasks that require extreme precision. But what exactly are they, and how do they operate?

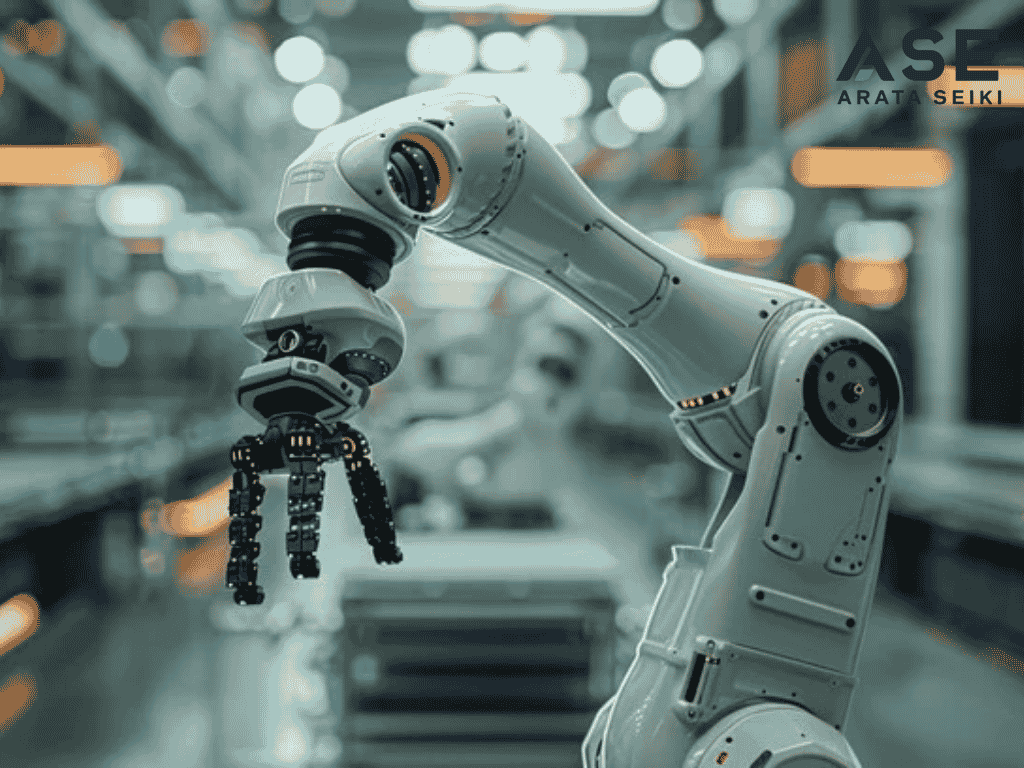

1. What is a Robotic Arm?
A robotic arm is a type of robot with a geometric structure similar to a human arm, consisting of components linked by rotary or sliding joints. Its primary purpose is to perform complex manual tasks such as grasping, holding, welding, painting, pick-and-place, or assembling components within a predefined workspace.
Unlike simple automated machinery, a robotic arm offers flexible programming. When production processes change, users only need to update the command code, and the arm performs entirely new work cycles without hardware modifications.

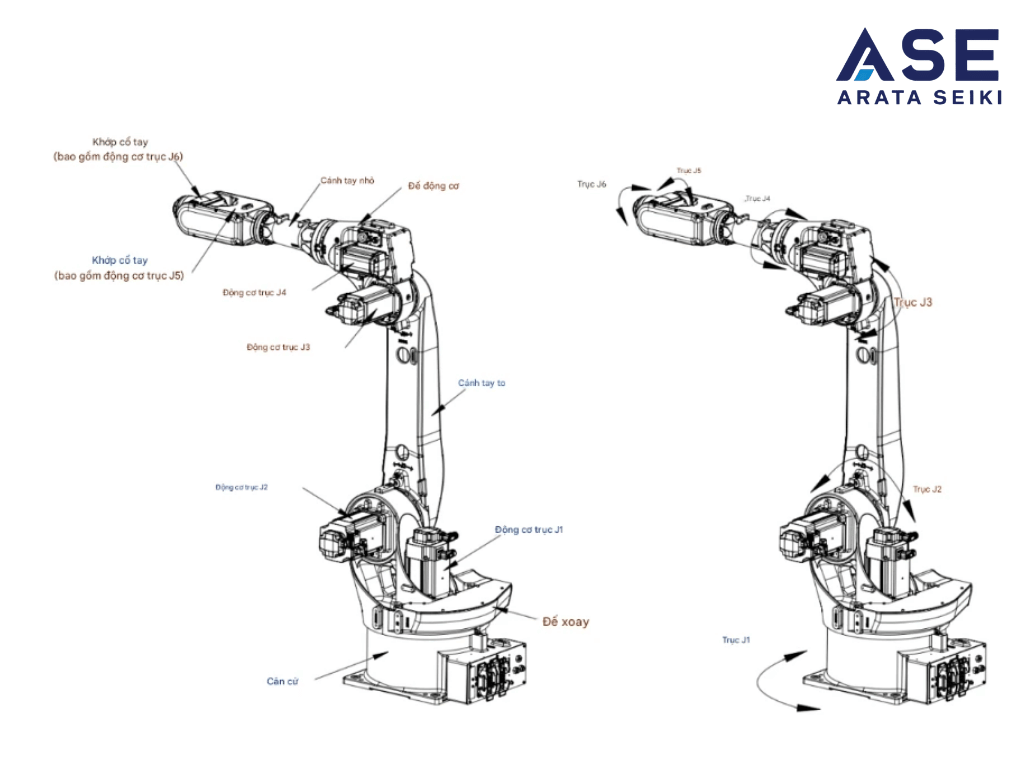

2. Basic Construction of a Robotic Arm
To perform smooth and precise movements, a typical robotic arm includes the following key components:
The Arm (Link)
These are the rigid segments connected together, acting as the upper arm, forearm, and hand of a human. Materials are usually aluminum alloy, steel, or carbon fiber to ensure rigidity while maintaining a light weight.
Joints
These parts create flexibility. There are two main joint types:
Revolute joint: Acts like a human elbow or shoulder, allowing rotary motion.
Prismatic joint: Allows translational motion along an axis.
Actuators
Considered the "muscles" of the robot, actuators provide power for joint movement. The most common are servo motors or stepper motors, combined with gearboxes to increase torque, allowing the robot to lift loads of hundreds of kilograms gently.
End Effector
This is the part in direct contact with objects. Depending on the application, it can be:
Grippers: For holding products.
Welding torch: Used in mechanical fabrication.
Vacuum suction cups: Used in food packaging.
Spray nozzle: Used in coating industry.
Controller
The "brain" of the robotic arm. The controller receives commands from programming software, processes sensor data, and commands motors to move to the desired coordinate and speed.

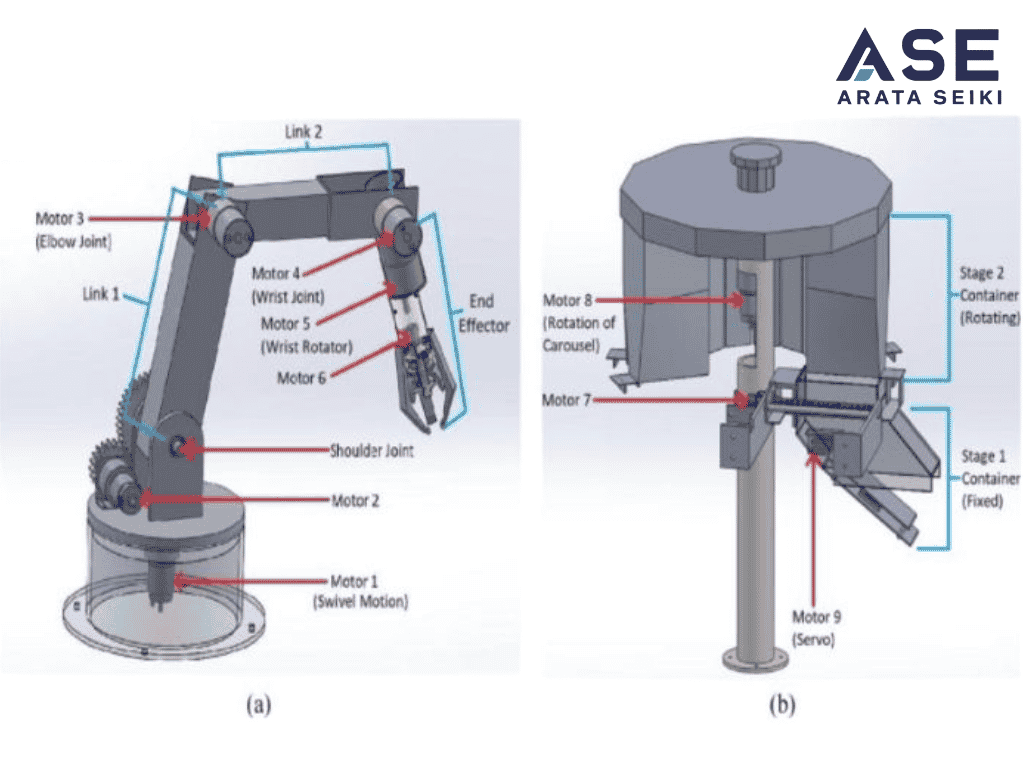

3. Operating Principle of a Robotic Arm
The operation of a robotic arm is based on the combination of control systems and mechanical dynamics. This process happens in sequential steps:
Path Planning: The programmer uses control languages or a Teach Pendant to define coordinate points (points A, B, C...) that the robot must pass through.
Signal Processing: The controller calculates the required rotation angles for each joint to reach the correct position in 3D space (X-Y-Z axes).
Feedback: Sensors mounted on motors (Encoders) continuously send current position data back to the controller. If there is an error, the system automatically adjusts instantly for smooth, millimeter-accurate movement.
Execution: The robot performs the task (grasp, weld, assemble) and repeats the process with constant precision over time.
4. Why are Robotic Arms Important in Industry?
The appeal of robotic arms to manufacturing businesses lies not only in technology but also in practical economic benefits:
Increased Productivity: Robots work 24/7 without fatigue, helping optimize output far beyond manual labor.
Consistent Quality: Every product is processed with the same pressure and speed, reducing error rates to near zero.
Occupational Safety: Deploying robots in hazardous environments (high temperature, chemicals, dust) protects workers' health.
Flexibility: Rapid application switching allows businesses to easily adapt to changing market trends.
Understanding the robotic arm is the first step toward smart factory models. Whether you are in mechanical engineering, electronics, or food, a suitable robotic arm will surely be a powerful leverage to accelerate revenue and assert your brand position in the market.
