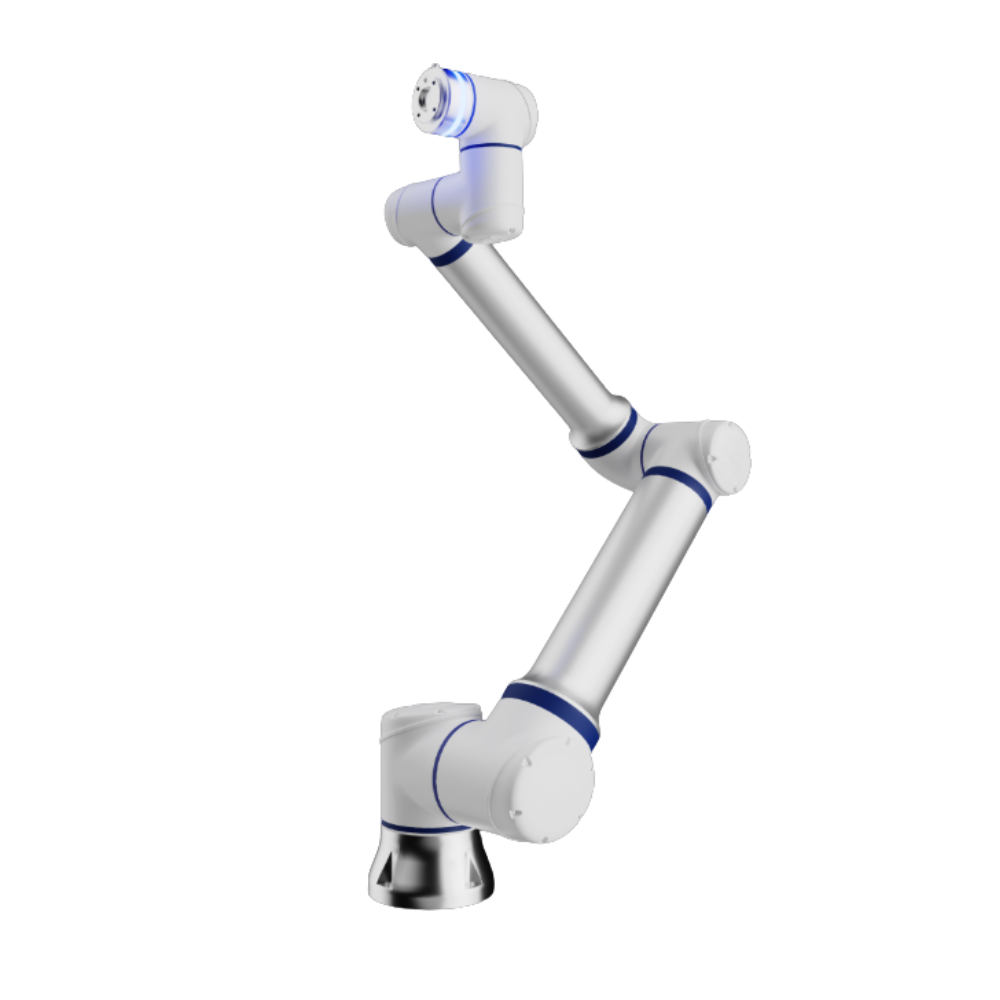

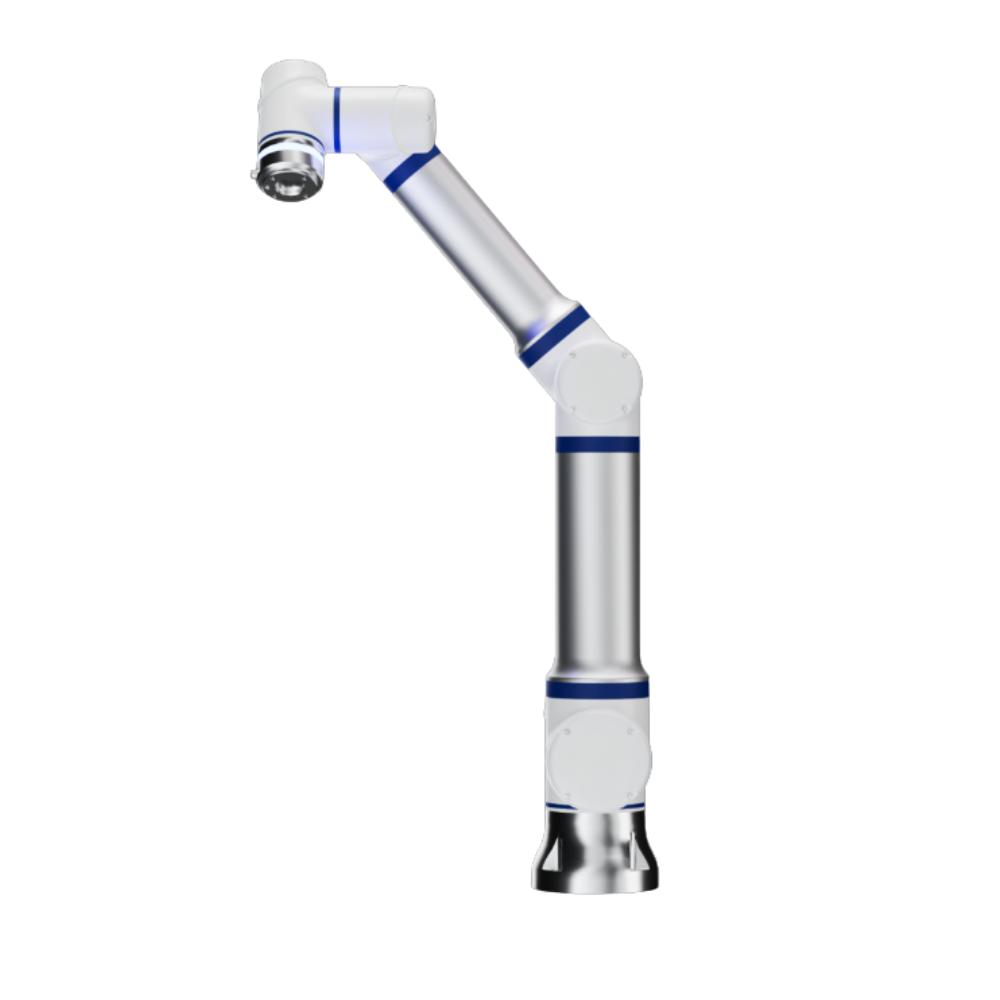

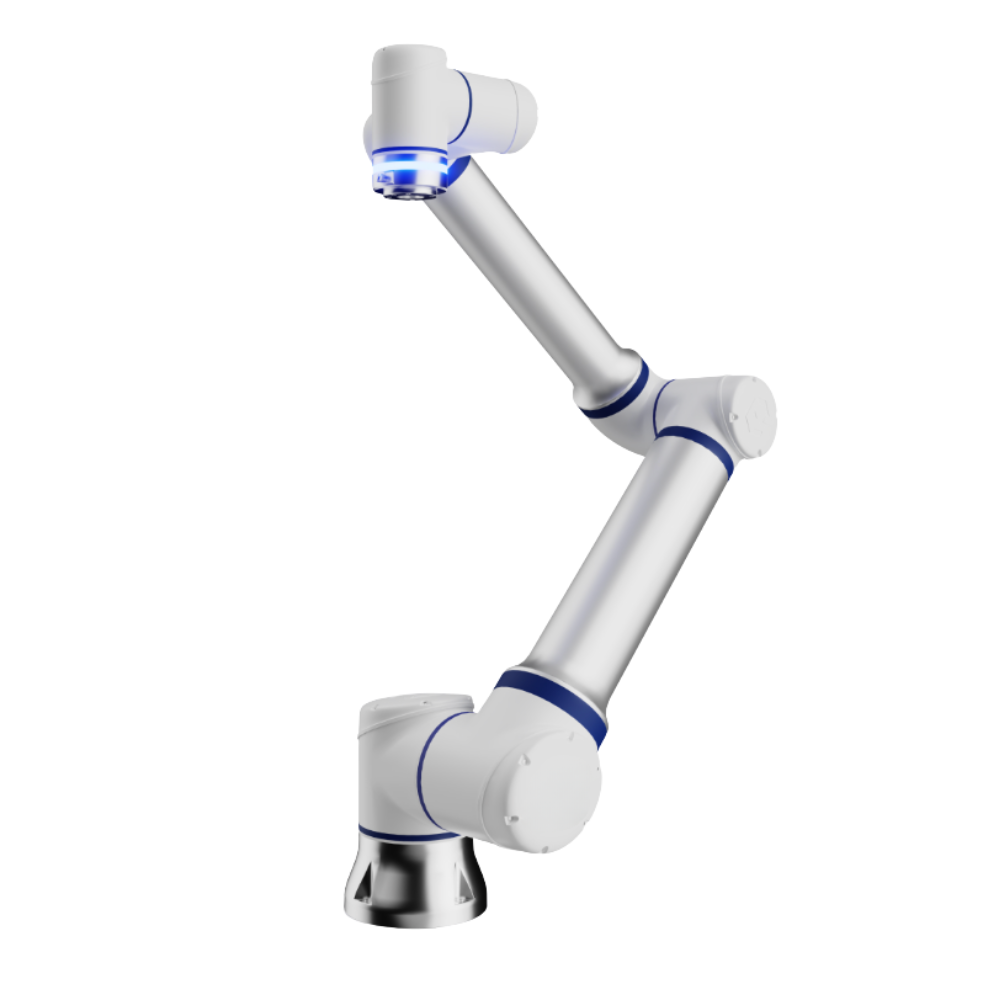

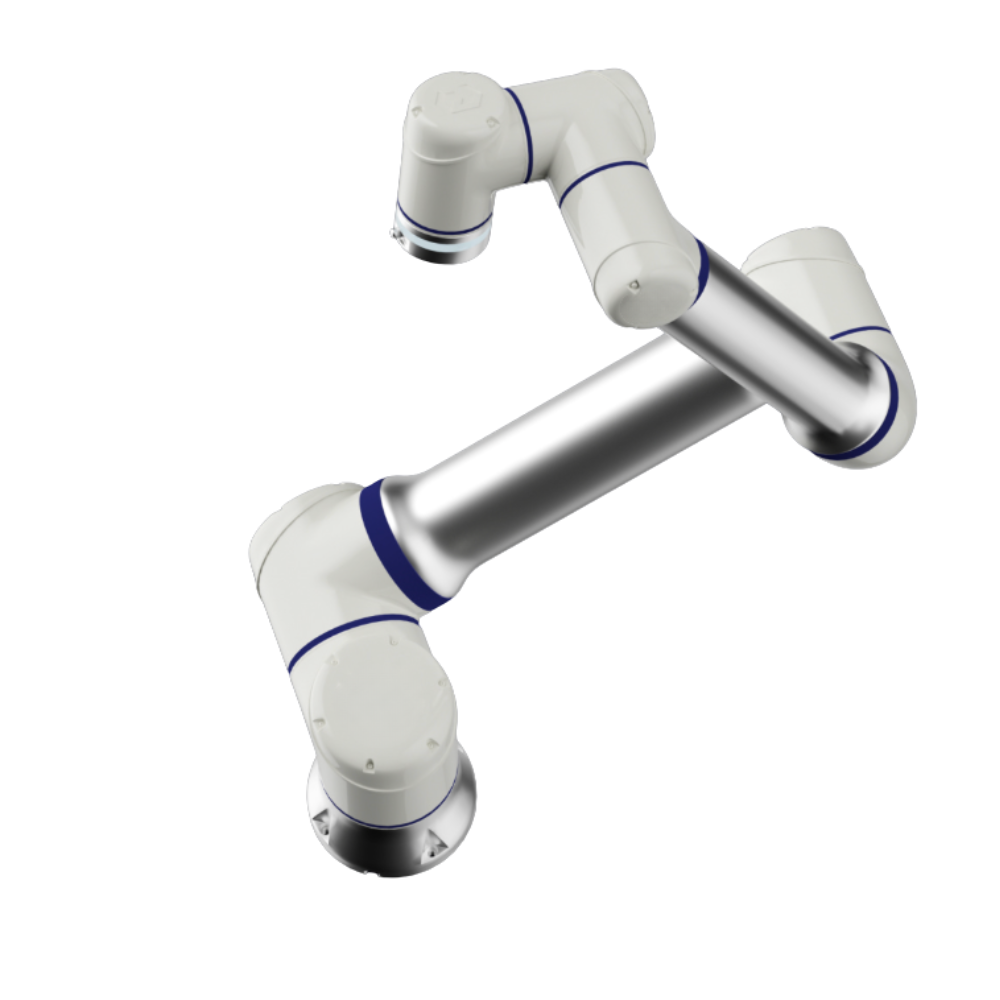

The ASE612 collaborative robot is a next-generation 6-axis cobot from ASE Robots, engineered to meet the demands of high-precision, large-payload, and wide-range industrial automation. With a maximum payload of 12 kg, a working radius of 1304 mm, and a repeatability of ±0.05 mm, the ASE612 is an ideal solution for modern manufacturing applications such as CNC machine tending, palletizing, mechanical assembly, and material handling.
Despite its strong and stable construction, the ASE612 remains highly flexible with a lightweight body of just 34 kg, making installation, maintenance, and relocation significantly easier compared to traditional industrial robots in the same class. Equipped with a precise torque-sensing system, the robot detects collisions and automatically stops, ensuring maximum safety for operators.
The ASE612 also features an IP65 protection rating (upgradeable to IP68), enabling reliable operation in environments with dust, moisture, or industrial oils. Its low energy consumption — only about 435 W — helps businesses reduce operating costs while maintaining high performance during continuous production.
Key Features
High performance: Supports up to 12 kg payload with TCP speeds up to 3.4 m/s.
Wide working range: 1304 mm radius suitable for medium to large production lines.
Precision & stability: ±0.05 mm repeatability ensures high-accuracy tasks.
Enhanced safety: Intelligent torque sensor automatically stops the robot upon collision.
Energy-efficient: Low power consumption optimized for long-term production.
High compatibility: Supports RS-485, Modbus RTU, and standard industrial I/O.
