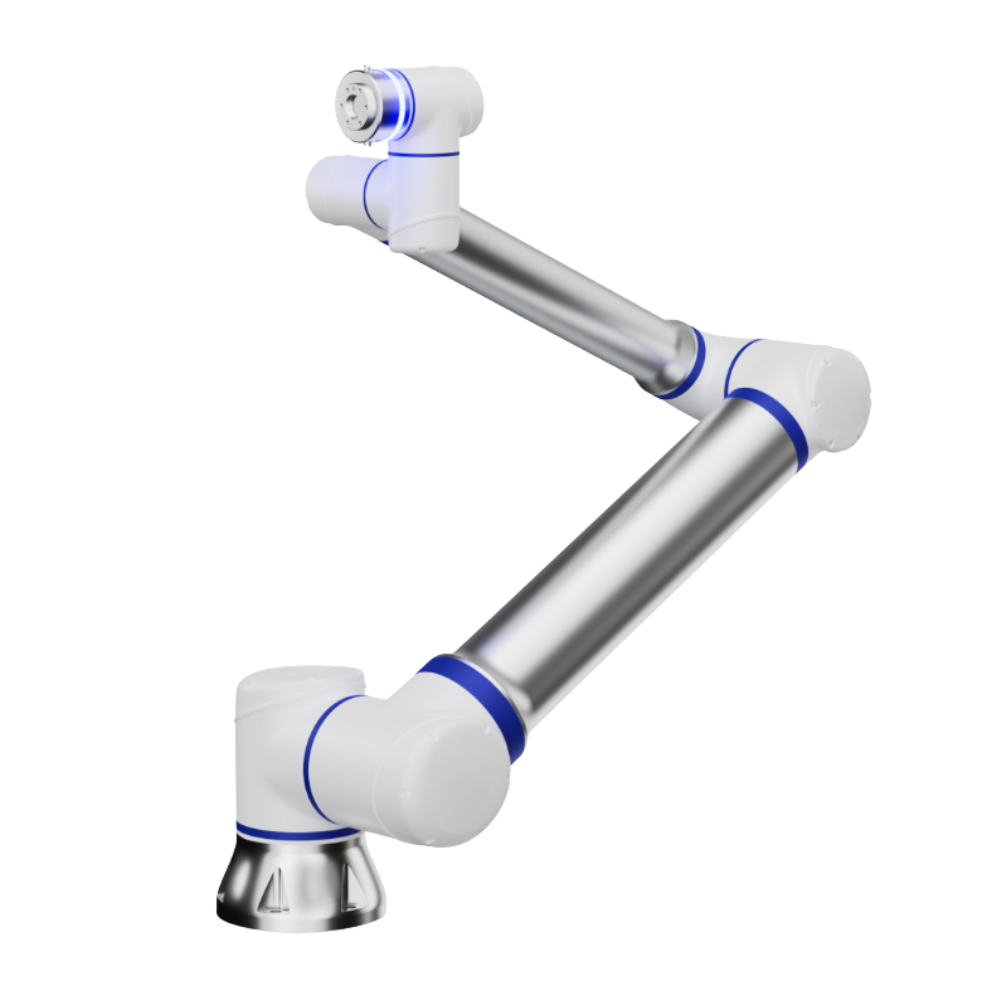

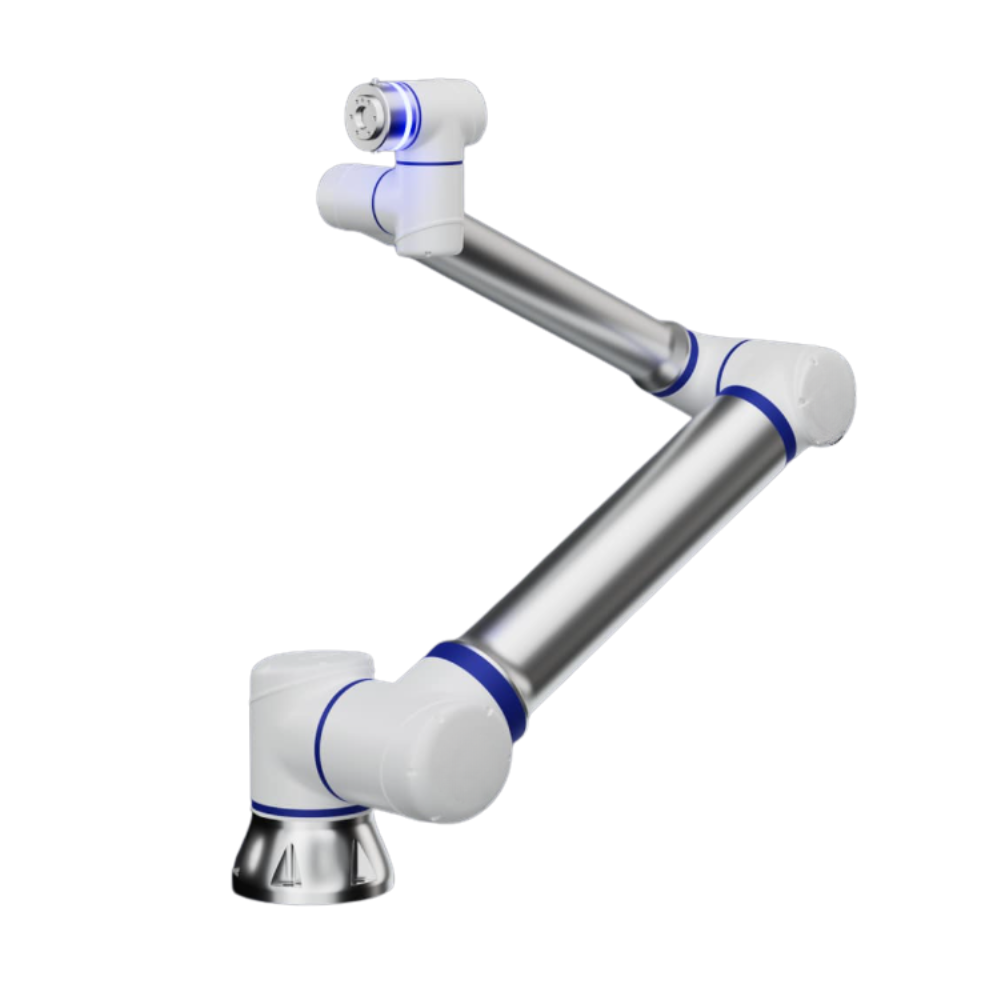

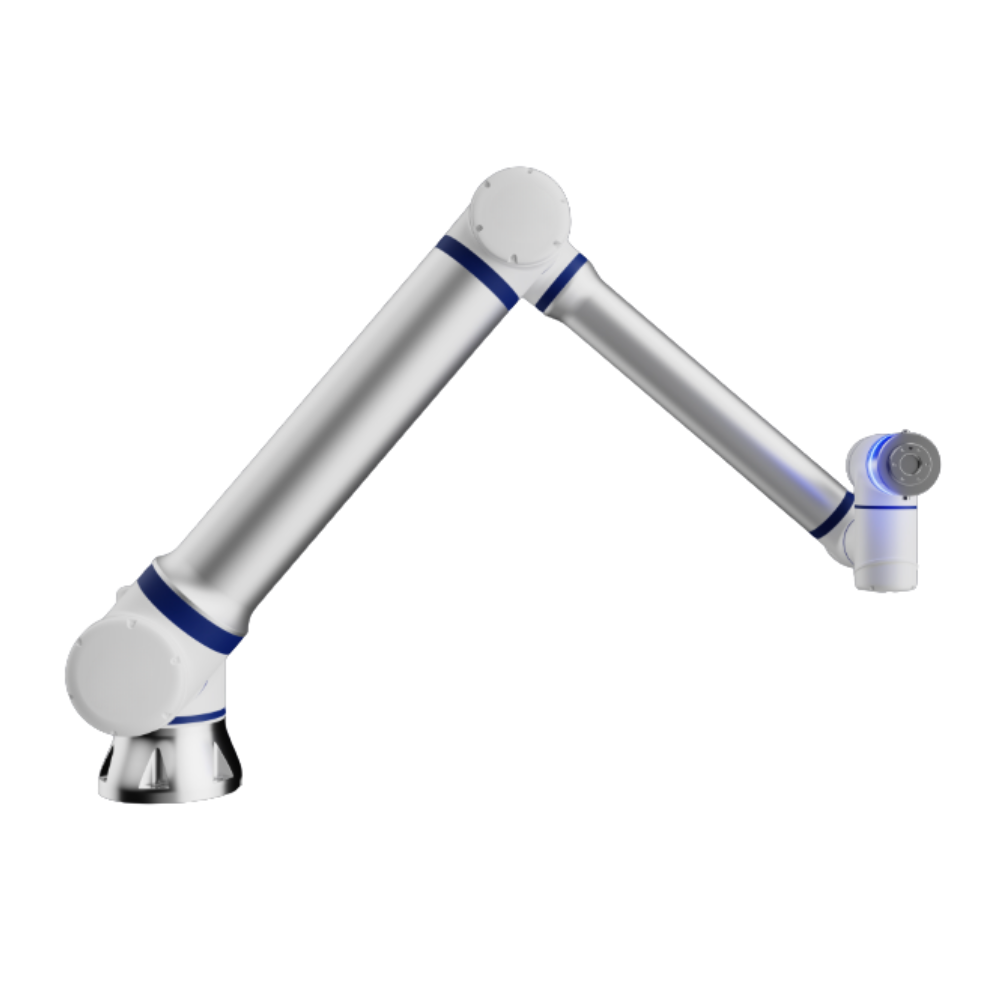

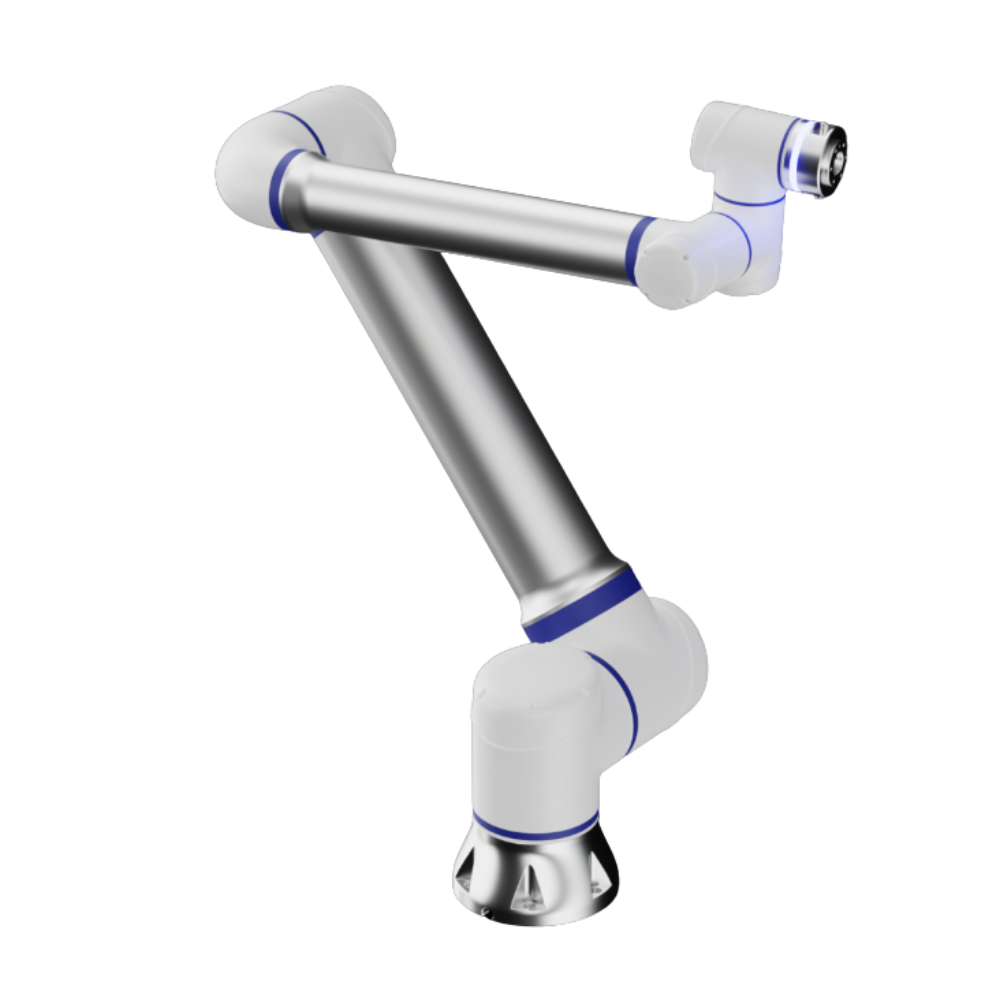

The ASE620 collaborative robot is a high-end model from ASE Robots, developed based on the Elite Robots CS620 platform. With a maximum payload of 20 kg, a working radius of 1,800 mm, and repeatability of ±0.10 mm, ASE620 delivers a powerful automation solution suitable for heavy-duty manufacturing, palletising, large material handling, and flexible movement within factory environments.
The ASE620 is designed for high flexibility: the robot weighs around 60 kg, features a compact Ø240 mm footprint, and comes with IP65 protection (upgradeable to IP68), ensuring stable operation even in harsh industrial conditions.
Its advanced control and communication system allows seamless integration with other equipment: a dual tool connector supporting up to 5 A, along with RS-485, Modbus RTU, EtherNet/IP, and Profinet communication, meeting the requirements of complex industrial automation setups.
Key Features
Maximum payload of up to 20 kg, ideal for large material handling and palletising tasks.
Extended 1,800 mm reach, allowing a wider workspace and flexible installation.
High repeatability of ±0.10 mm, ensuring precision for demanding operations.
IP65 protection (optional IP68) for reliable operation in dusty or humid factory environments.
Powerful tool system with dual connectors supporting multiple end-effectors simultaneously.
Easy integration into production lines with popular industrial communication protocols.
Main Technical Specifications
Category
ASE620 Specification
Maximum Payload
20 kg
Working Radius
1,800 mm
Repeatability
±0.10 mm
Number of Axes
6
Robot Weight
~60 kg
Footprint
Ø 240 mm
Typical TCP Speed
3.9 m/s
Protection Rating
IP65 (optional IP68)
Typical Power Consumption
~625 W
Operating Temperature
−10 °C to 50 °C
Tool Communication
RS-485, Modbus RTU, EtherNet/IP, Profinet
Tool I/O Connectors
T1: M8 8-pin; T2: Ø12.8 mm 4-pin
Typical Applications
Heavy pick & place tasks in automotive and metal industries.
High-speed palletising and end-of-line packaging.
Machine tending for large CNC machines, milling, cutting, or injection molding.
Integration with AGV/AMR for mobile automation solutions.
Welding, gluing, heat-treating, and other processes requiring high reach and load capacity.
Benefits of Choosing ASE620
Superior productivity with high payload and extended reach, reducing cycle time and labor costs.
Easy programming and integration, minimizing setup time and operational complexity.
High reliability, suitable for heavy-duty industrial environments with 24/7 operation.
Versatile and flexible, enabling multiple applications using a single robot.
