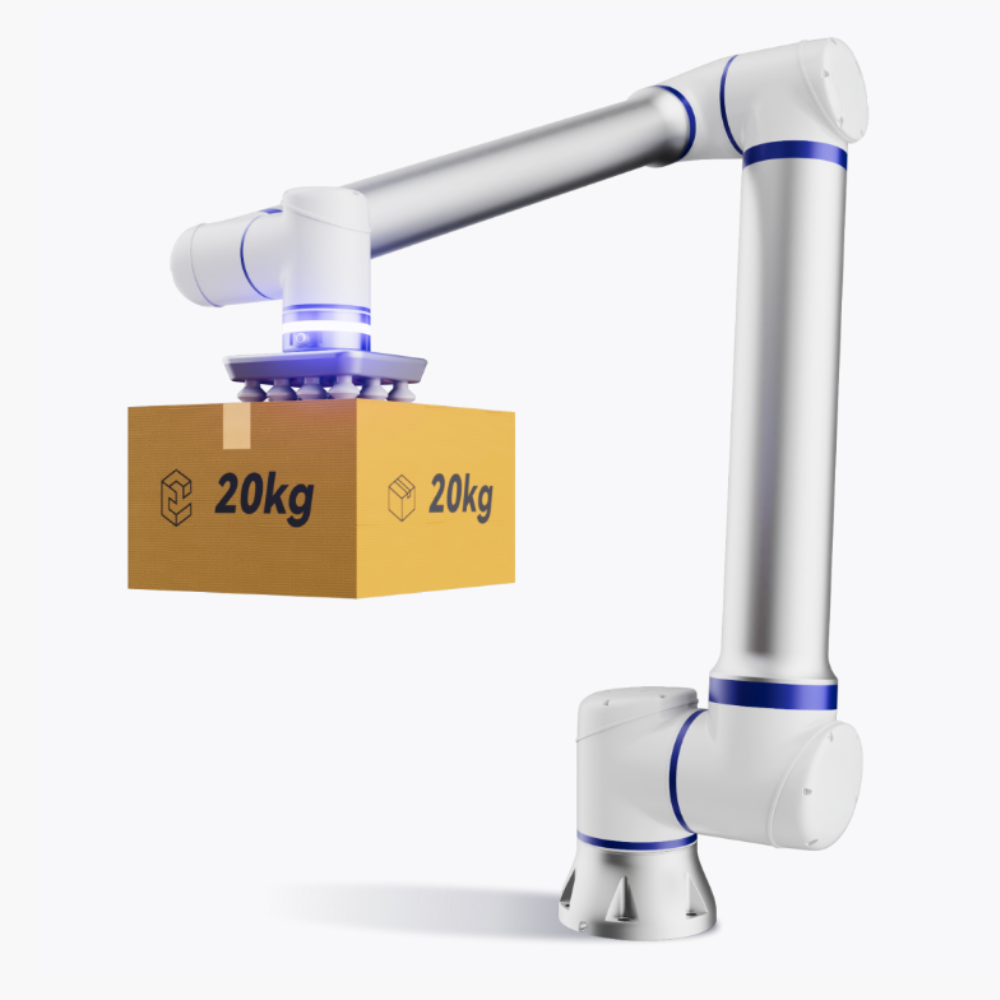

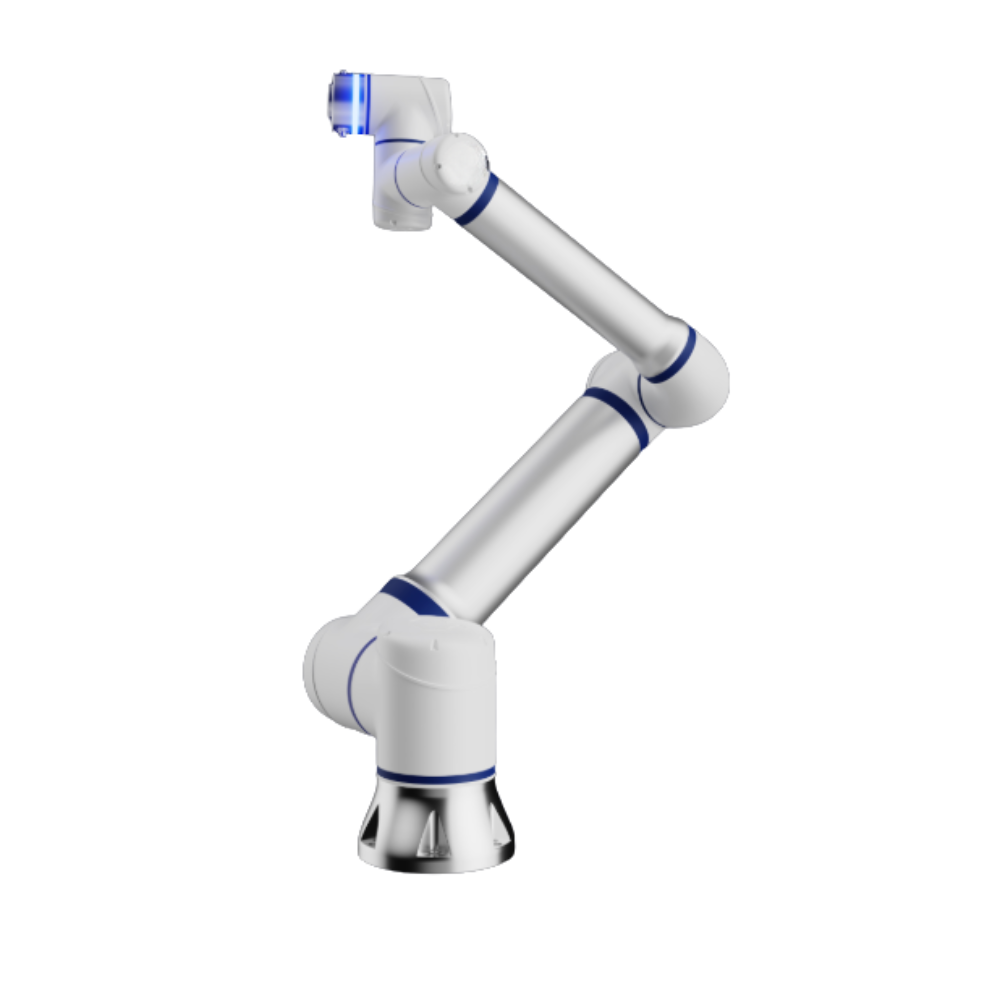

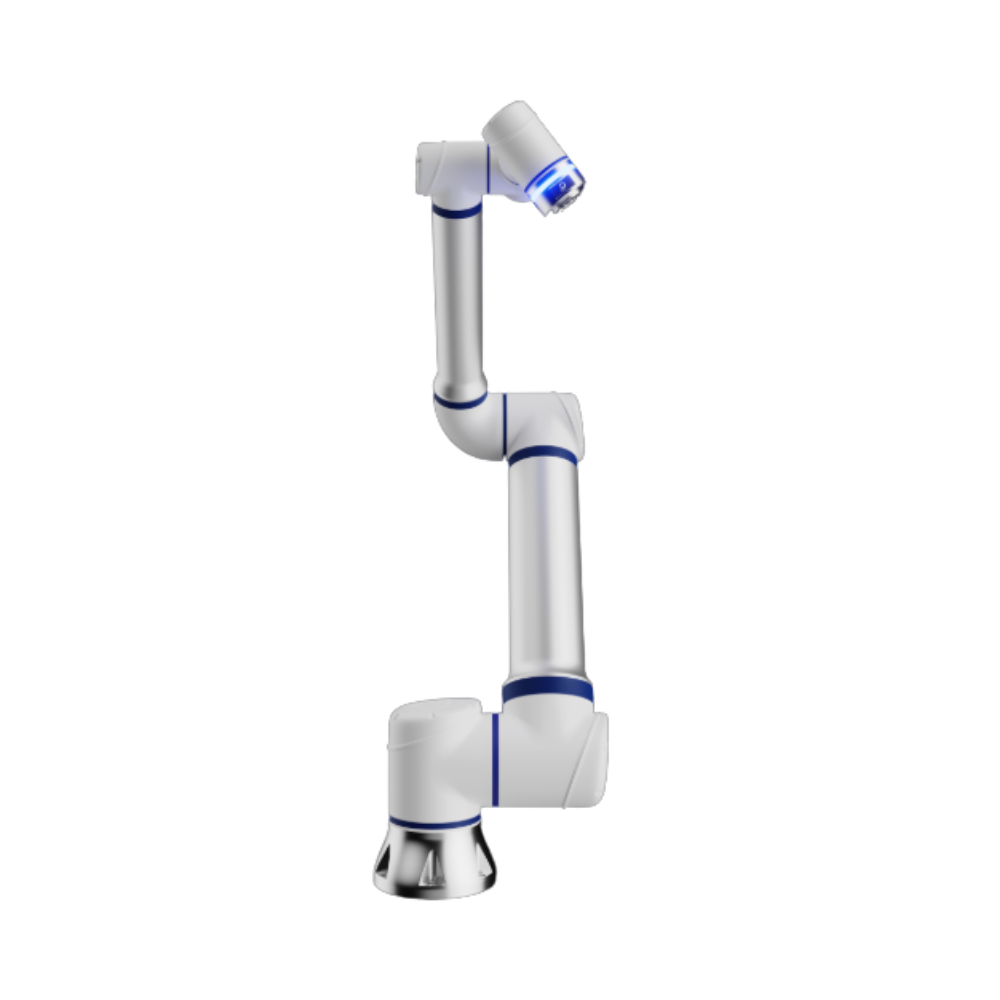

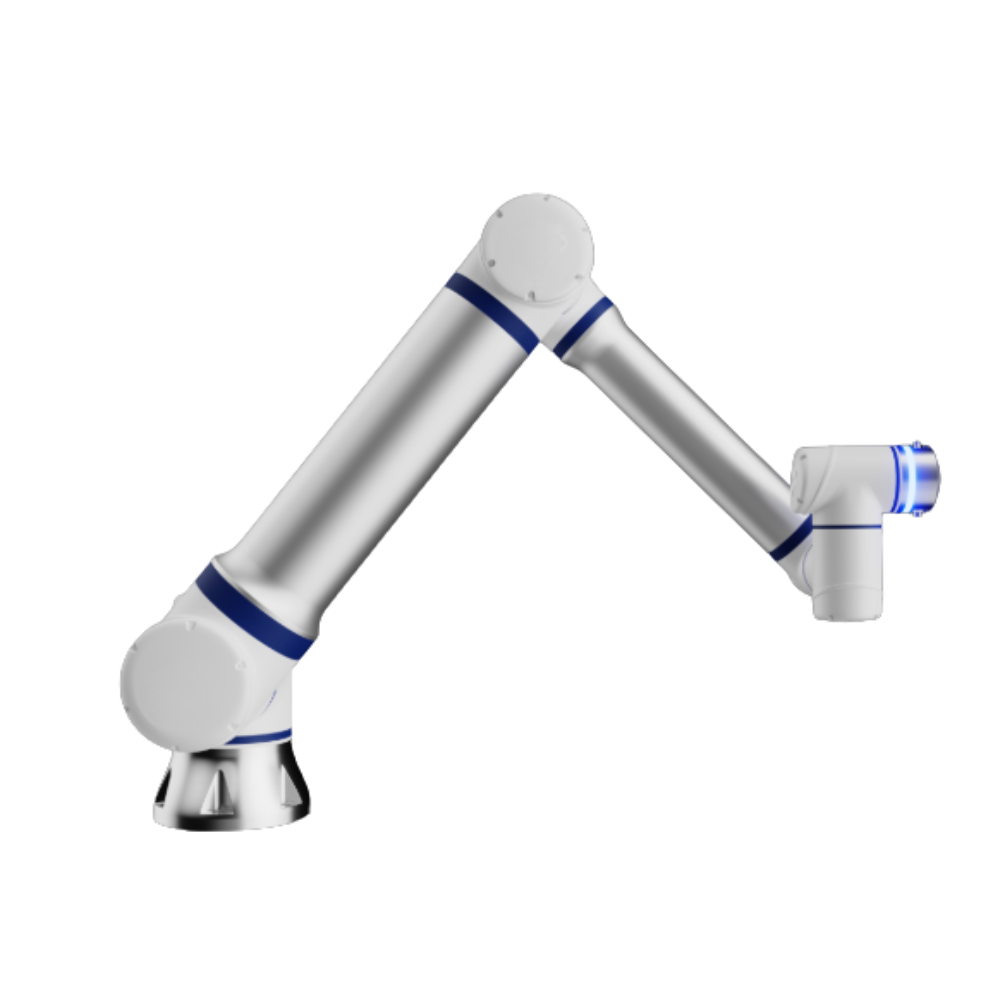

The ASE625 collaborative robot is a high-end 6-axis model from ASE Robots, developed based on the Elite Robots CS625 platform. With a maximum payload of 25 kg, a 2,000 mm working radius, and a repeatability of ±0.10 mm, the ASE625 delivers a powerful automation solution for heavy-duty industrial applications such as palletizing, large material handling, and the manipulation of bulky mechanical or electronic components.
The ASE625 is engineered with a robust and stable mechanical design while remaining flexible enough for installation in wide production lines. The robot weighs approximately 70 kg, features a compact Ø260 mm footprint, and is rated at IP65 protection (optional IP68), ensuring long-term durability even in harsh industrial environments. With an average power consumption of around 700 W, it offers excellent energy efficiency during continuous operation.
ASE625 integrates an intelligent control system with versatile communication options, including RS-485, Modbus RTU, EtherNet/IP, and Profinet, along with diverse I/O connectors (M8, Ø12.8 mm), making it easy to integrate with production lines, CNC machines, AGV/AMR systems, and machine vision solutions.
Key Features
25 kg maximum payload – ideal for palletizing and heavy material handling.
2,000 mm working radius – wide operation range for optimized production flow.
High repeatability of ±0.10 mm – ensures precision for critical tasks.
IP65 protection (optional IP68) – reliable performance in harsh environments.
Flexible industrial communication, supporting a wide variety of external peripherals.
High performance – up to 4.0 m/s TCP speed for smooth and stable operation.
Main Technical Specifications
Category
ASE625 Specification
Maximum payload
25 kg
Working radius
2,000 mm
Repeatability
±0.10 mm
Number of axes
6 axes
Robot weight
~70 kg
Footprint
Ø260 mm
Max TCP speed
4.0 m/s
Protection rating
IP65 (optional IP68)
Typical power consumption
~700 W
Operating temperature
−10 °C to 50 °C
Tool communication
RS-485, Modbus RTU, EtherNet/IP, Profinet
Tool I/O connectors
T1: M8 8-pin; T2: Ø12.8 mm 4-pin
Typical Applications
Heavy material handling and palletizing in automotive, mechanical, and logistics industries.
Machine tending for large CNC machines, milling machines, and presses.
Material transfer and loading/unloading in industrial production lines.
Welding, adhesive dispensing, cutting, or tasks requiring high payload capacity.
Integration with AGV/AMR systems for advanced mobile automation.
Benefits of Choosing ASE625
Significant productivity increase and reduction in labor costs.
Stable operation with high precision, suitable for demanding industrial environments.
Easy to program and integrate with smart manufacturing systems.
Versatile and adaptable, capable of handling multiple tasks with a single robot.
