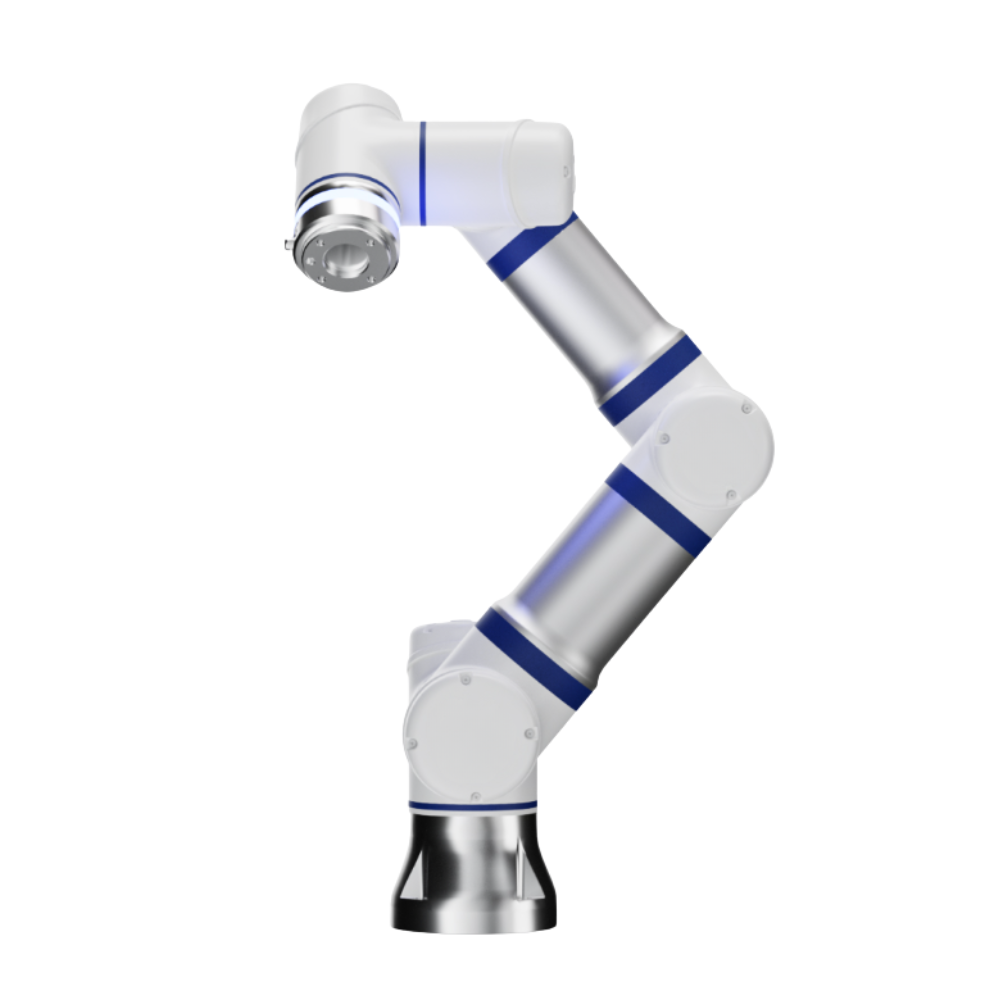

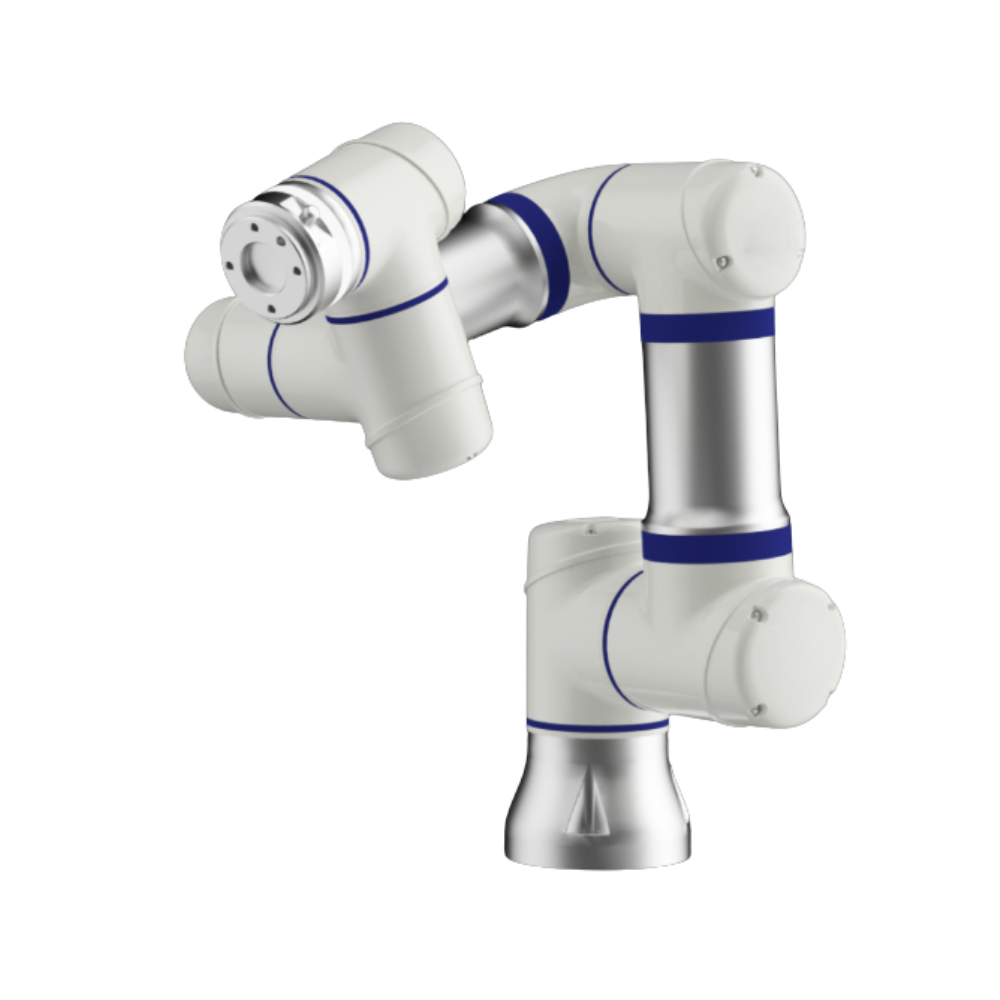

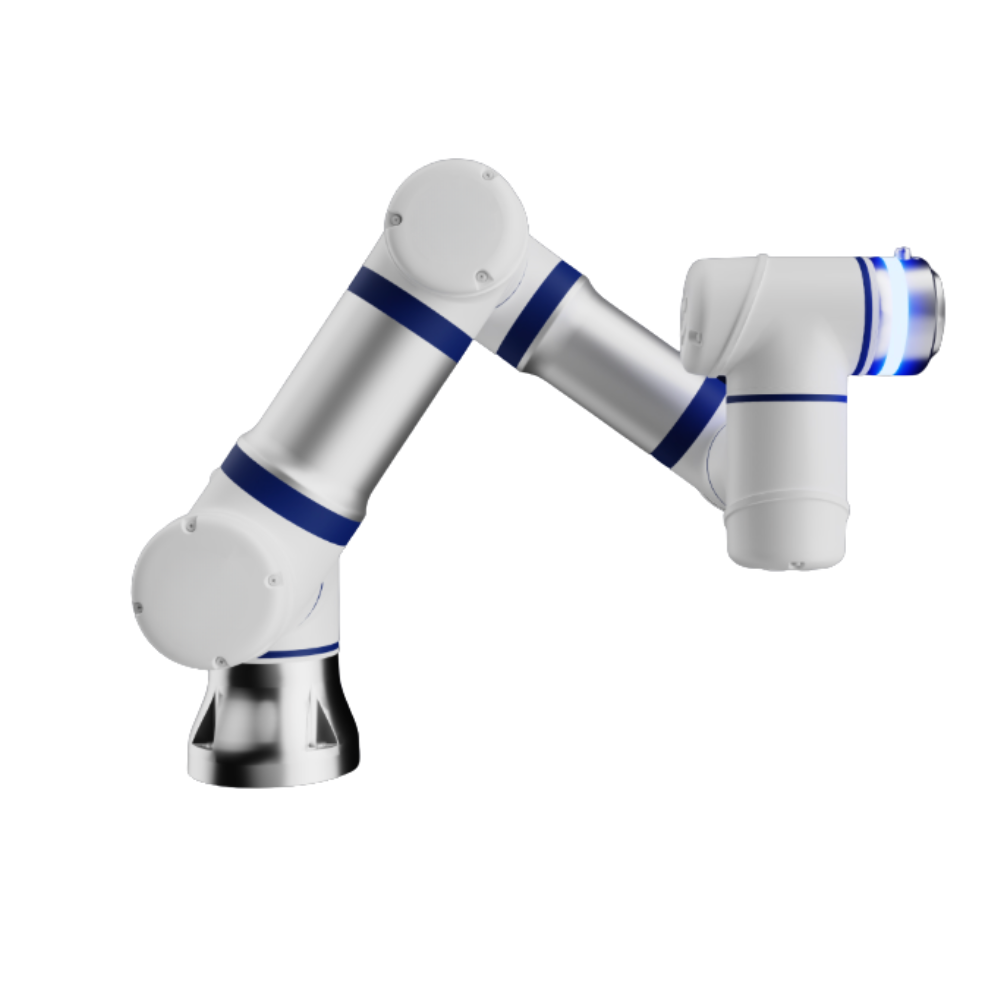

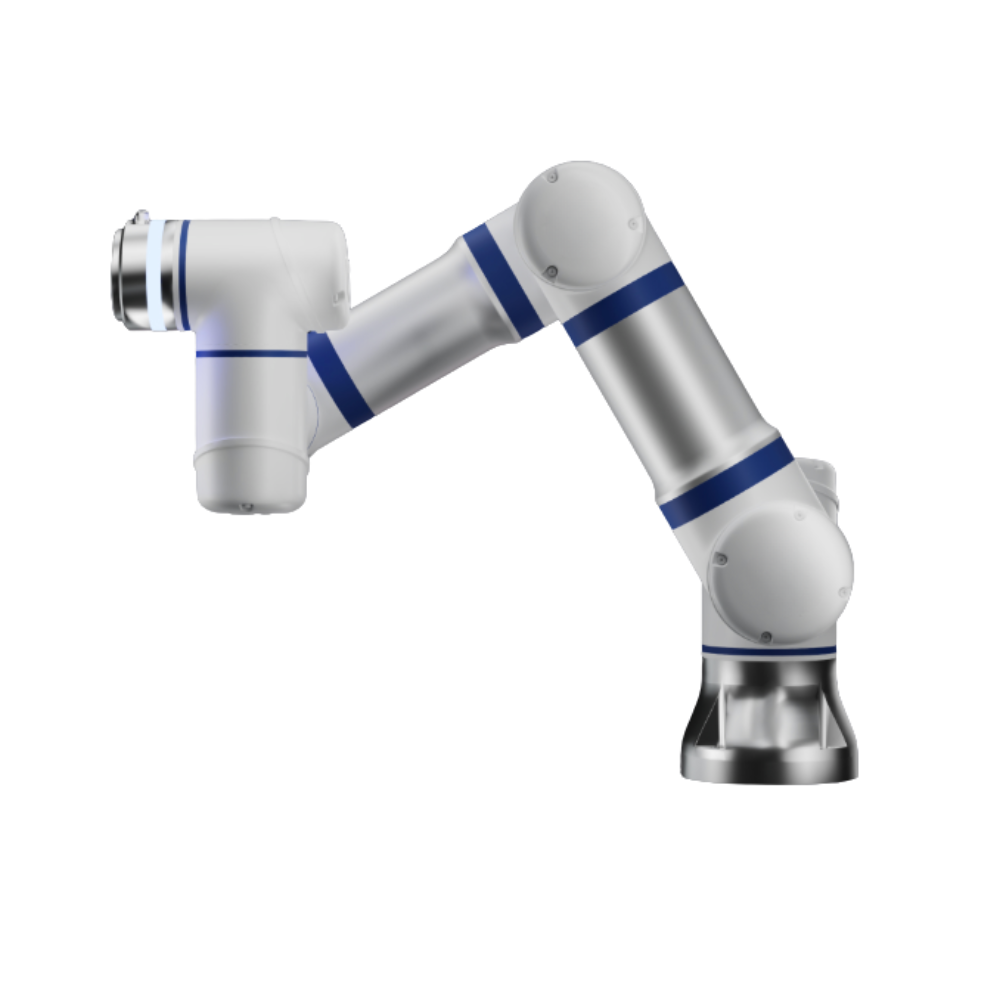

he ASE63 collaborative robot is a new-generation 6-axis cobot from ASE Robots, designed to meet the demand for flexible automation in limited workspaces. With a 3 kg payload, 624 mm working radius, and high repeatability of ±0.02 mm, ASE63 is the ideal choice for applications that require precision, efficiency, and high safety standards.
Its compact structure and lightweight design—only 15 kg—allow ASE63 to be easily installed on workbenches, production lines, or mobile robotic platforms. With safety-focused design, intuitive programming, and excellent compatibility, ASE63 becomes a comprehensive solution for smart and flexible manufacturing.
Key Features
High-precision performance:
Repeatability of ±0.02 mm ensures exceptional accuracy for delicate assembly and precise handling tasks.
Compact and lightweight:
Weighing just 15 kg, the robot is easy to move and integrate into various working positions.
Safe operation:
Equipped with intelligent torque sensors that enable automatic emergency stop upon collision detection.
Energy efficient:
Consumes only 185 W, helping reduce operating costs.
Flexible compatibility:
Supports multiple industrial communication protocols such as Modbus RTU, RS-485, and extended I/O.
Enhanced protection:
Rated IP65 (optional IP68), suitable for dusty or humid environments.
Detailed Technical Specifications
| Category | ASE63 Specifications |
|---|
| Maximum payload | 3 kg |
| Working range (radius) | 624 mm |
| Repeatability | ±0.02 mm |
| Number of axes | 6 axes |
| Protection rating | IP65 (optional IP68) |
| Robot weight | 15 kg |
| Average power consumption | 185 W |
| Control power supply | 100–240 V AC |
| Maximum TCP speed | 2.0 m/s |
| Joint speeds | Axis 1–6: ±360° (180–230°/s depending on axis) |
| Tool I/O connector | M8, 8-pin |
| Tool I/O signals | 4 DI, 4 DO, 1 AI, 1 AO |
| I/O power supply | 0 / 12 / 24 V – 3 A / 2 A / 1 A |
| Tool communication | RS-485, Modbus RTU |
| Operating environment | Temperature −10 °C to 50 °C / Humidity < 90% (non-condensing) |
| Footprint | Ø 128 mm |
| Standard controller | 505 × 257 × 462 mm / 14 kg / IP44 |
| OEM controller (optional) | 495 × 200 × 227 mm / 7.1 kg / IP40 |
Applications of ASE63
Electronic component assembly:
Handles delicate tasks with high precision and speed.
Product packaging and sorting:
Performs fast and accurate pick-and-place operations.
Quality inspection:
Easily integrates with smart camera and sensor systems.
Education and research:
Ideal for training, testing, and robotics development programs.
Flexible automation:
Compatible with conveyors, AGVs, and other auxiliary equipment.
Benefits of Choosing ASE63
Optimized investment and operating costs
Reduced errors and improved production stability
Easy integration and maintenance
Safe for operators and environmentally friendly
