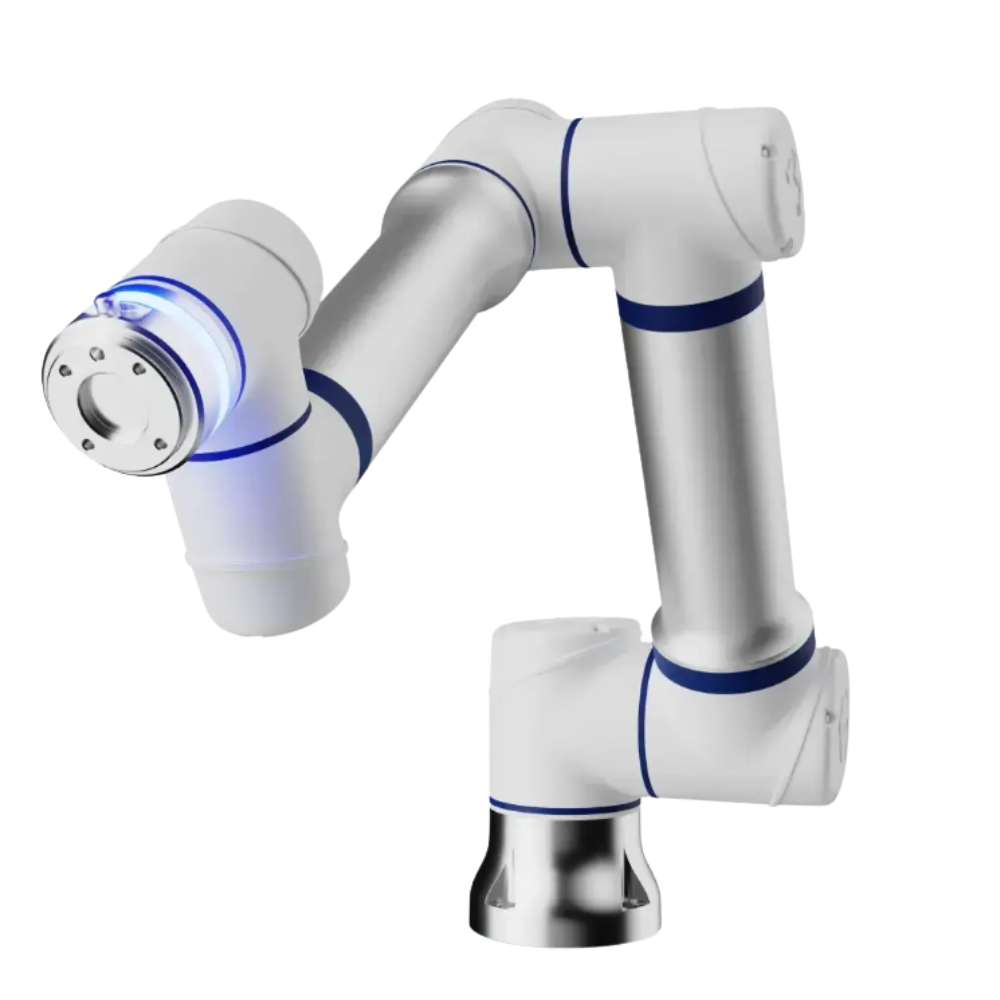

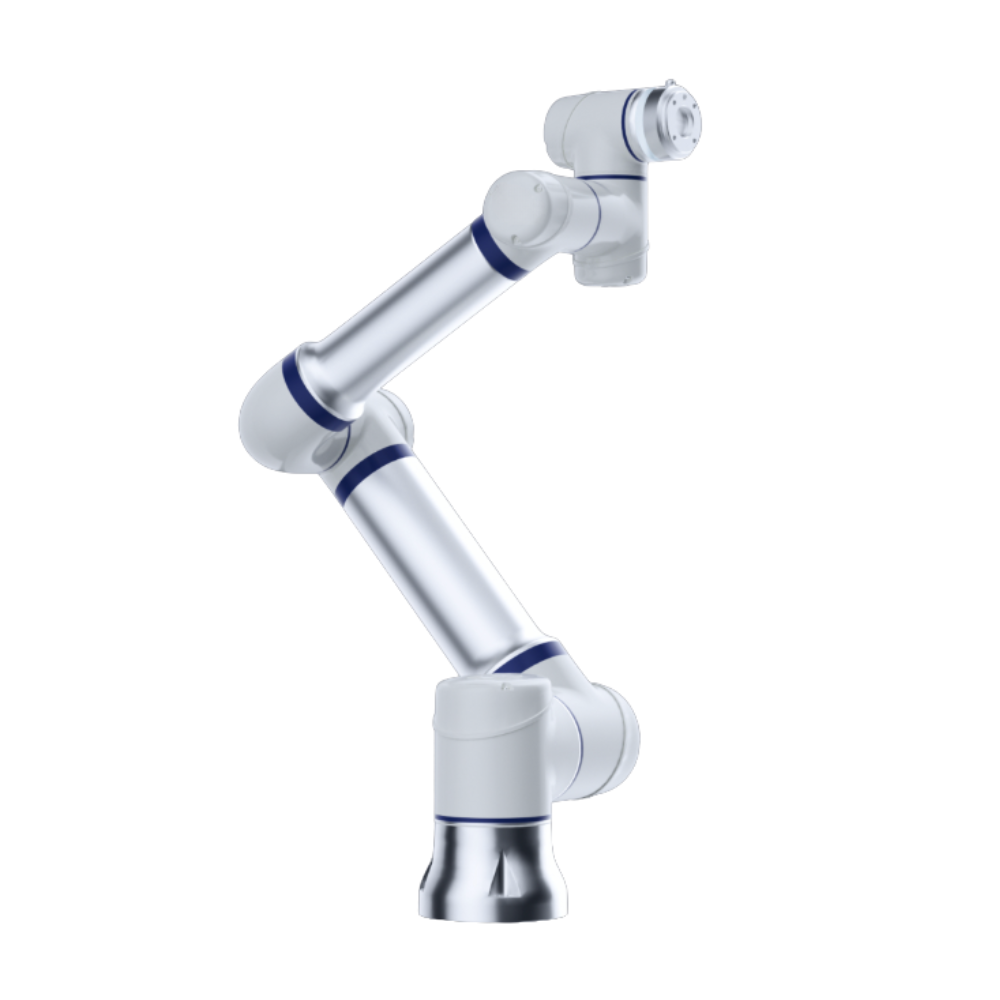

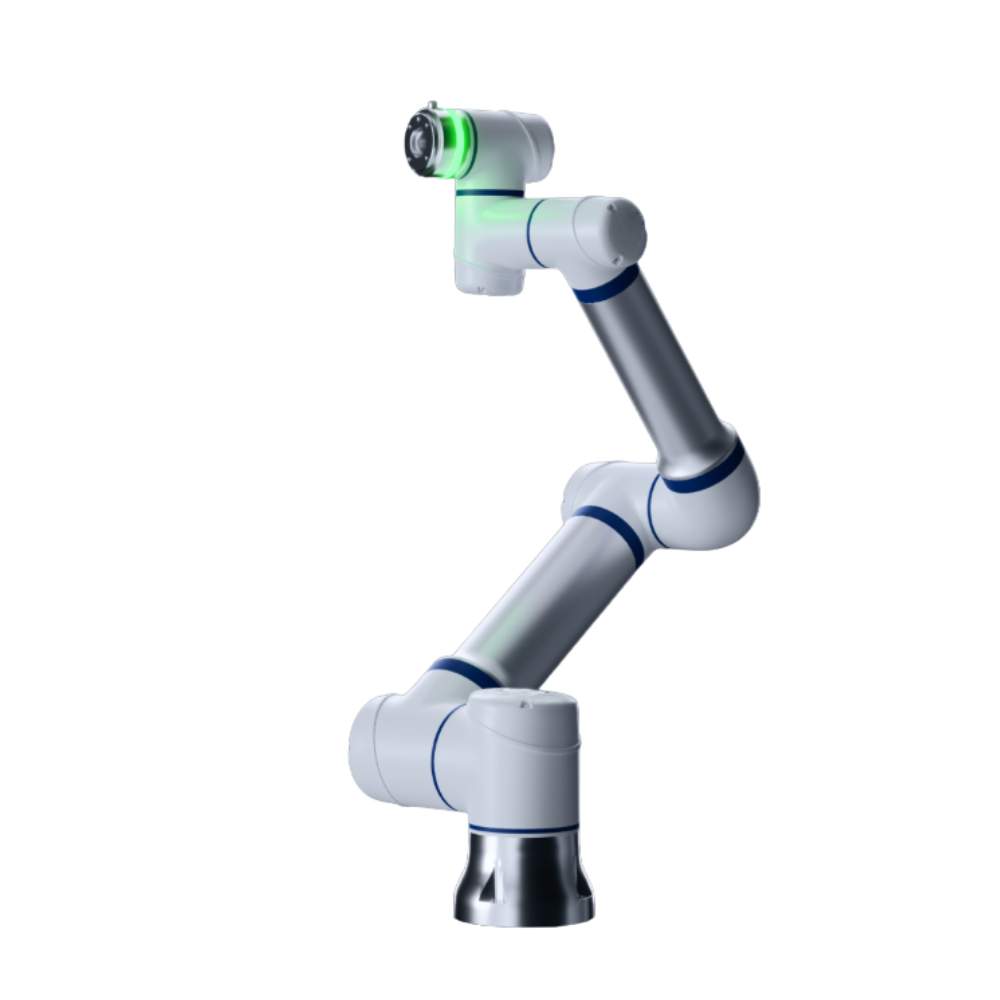

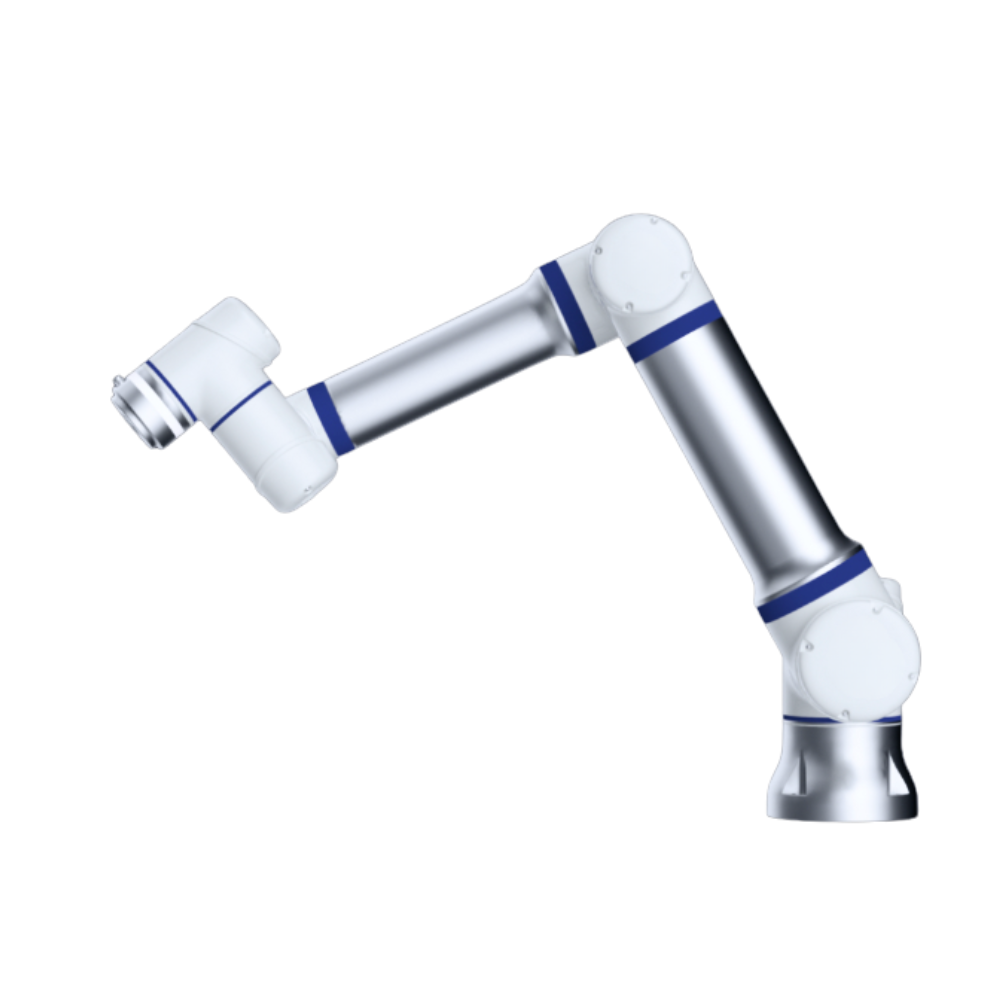

The ASE66 collaborative robot is a next-generation 6-axis model from ASE Robots, engineered to optimize automation tasks ranging from medium to heavy-duty operations. With a 6 kg payload, 914 mm working radius, and a high repeatability of ±0.03 mm, the ASE66 delivers outstanding performance for production lines requiring both speed and precision.
Designed with a compact and modern structure, the ASE66 fits easily into confined spaces while still offering a wide working envelope. Equipped with a sensitive torque-sensor system, the robot can detect unexpected collisions and automatically stop, ensuring maximum safety for operators.
Powered by high-performance servo motors and an intelligent control system, ASE66 provides smooth, accurate, and efficient motion across various industrial environments. With an IP65 protection rating (optional upgrade to IP68), the robot remains durable even in dusty or humid conditions.
Flexible connectivity options—including RS-485, Modbus RTU, and multiple I/O interfaces—allow ASE66 to integrate seamlessly with peripheral devices, machine vision systems, and advanced automation software.
Thanks to its strong performance, stability, and user-friendly programming, ASE66 is an ideal automation solution for industries such as component assembly, quality inspection, packaging, palletizing, and material handling.
Key Technical Specifications
Category
ASE66 Specification
Maximum Payload
6 kg
Working Radius
914 mm
Repeatability
±0.03 mm
Number of Axes
6 axes
Robot Weight
17 kg
Maximum TCP Speed
2.0 m/s
Protection Rating
IP65 (optional IP68)
Power Supply
100–240 V AC
Average Power Consumption
250 W
Operating Temperature
−10 °C to 50 °C
Tool Communication
RS-485, Modbus RTU
Tool I/O
4 DI, 4 DO, 1 AI, 1 AO
Robot Footprint
Ø 128 mm
Standard Controller
505 × 257 × 462 mm / 14 kg / IP44
Typical Applications
Electronic component assembly & inspection
Product packaging and loading/unloading
Automation in mechanical manufacturing & logistics
Research, laboratory automation, and robotics training
